IP65 3CCT Available ducitur downlight 5W/7W

Basic Parameters

• Exemplar Numeri:

-IP65-DL-5W-CCT (5W, 560LM)

-IP65-DL-7W-CCT (7W, 700-800LM)

•Input Power: 5W/7W (±5%)

• Luminous Flux:

-5W: 560LM

-7W: 700-800LM

• DUXERIT Chip: summus efficientiam SMD LEDs

• Color Temperature (CCT);

-3-Step Tunable via Dial Switch: 3000K (Warm) / 4000K (Neutralis) / 5000K (Cool)

• Color Reddendo Index (CRI): ≥80 (≥90 ad libitum)

• angulus angulus: 110° (trabes diluvii)

Electrical Parameters

• Input intentione: AC 85-265V (universale)

• Frequentia: 50/60 Hz

• Potestas Factor (PF): ≥0.9

• Coegi: inaedificata current coegi assidue (non-dimmable)

- Dimmable Bene: TRIAC / 0-10V (specificare cum ordinatione)

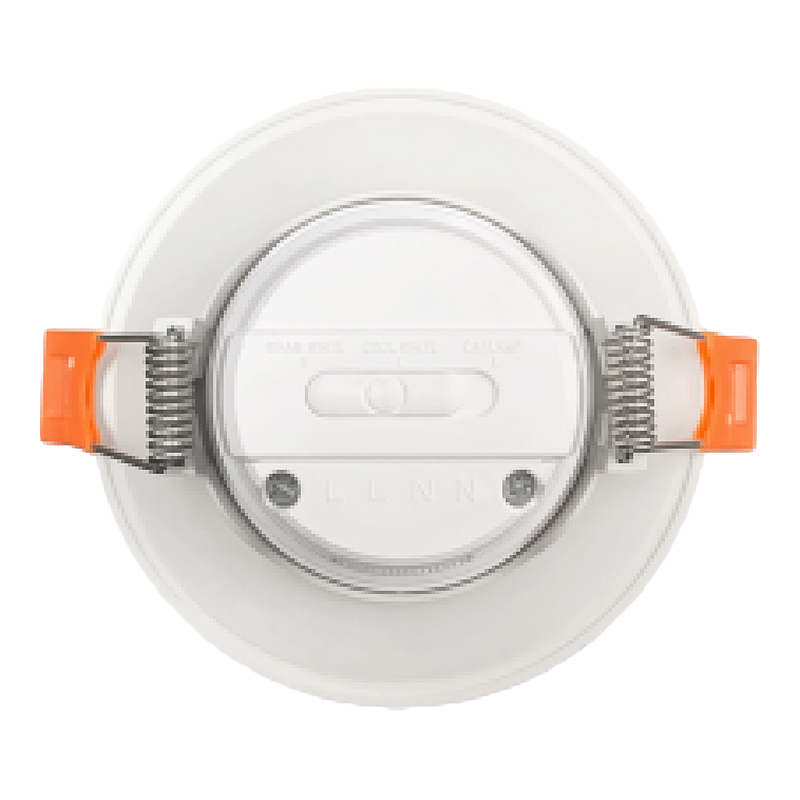

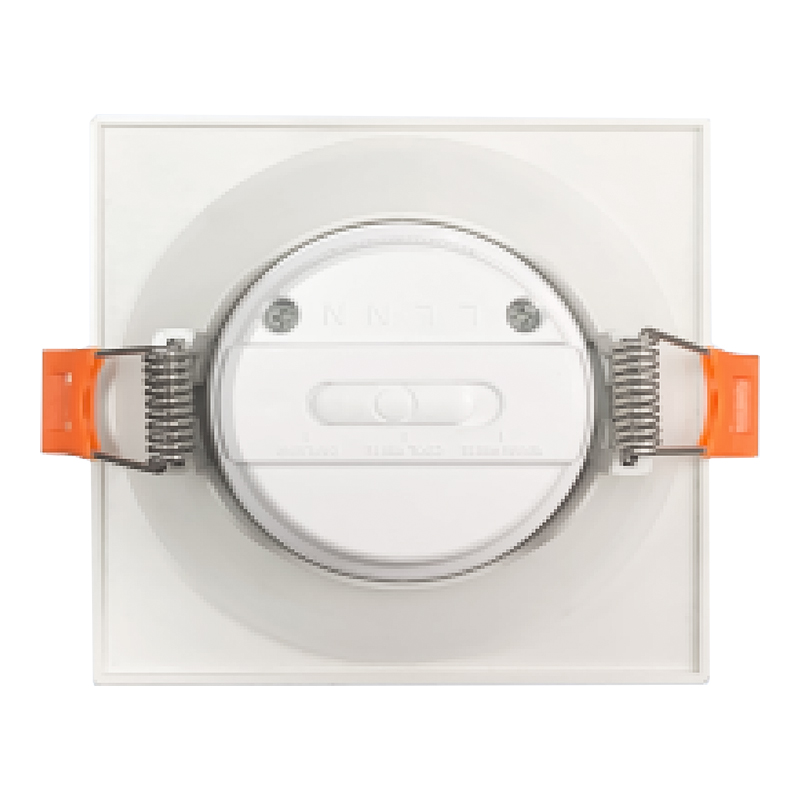

• CCT Switching: Physical dial switch (selectable ante institutionem)

Material & Construction

• Praesent: Aluminium Plastic iactaret (PBT basi aluminium mori-cast)

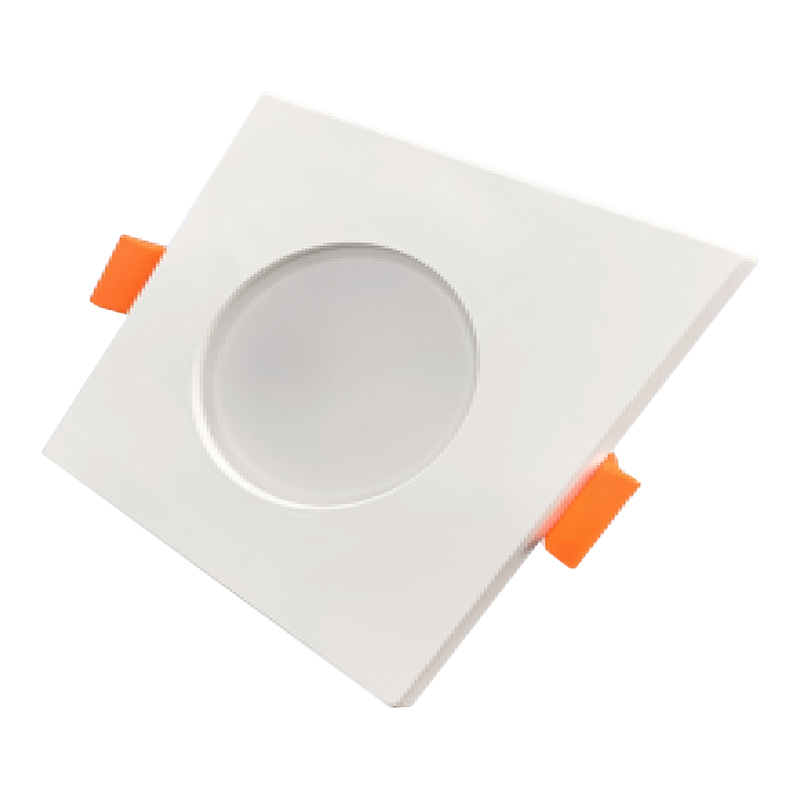

• Optiones Bezelae:

- Figura: Circum (default) / Quadratum (libitum)

- Color: Albus / Niger / Nickel-patella

• Lens: PMMA diffusa (110° trabs lata, anti-fulges)

• Installation: ver clip adscendens (IP65 gasket inclusa)

Scelerisque & Mechanical

• Calor Dissipatio: Aluminium basis plastica velit (optimized procuratio scelerisque)

• Operating Temperature: -20°C ad L°C

• Ingress Praesidium (IP): IP65 (dustproof & IMPERVIUS)

• Cutout Dimensiones: 63mm

• Product Dimensiones: 90mm H50mm

Optical & Performance

• Anti-Glare Design: Frosted diffundens (UGR<22)

• Efficacia: 100-110 lm/W

• Lifespan: 30,000 horae (L70)

Certificaciones & Obsequium

• Salus: CE, RoHS, EN/IEC 60598

• EMC: EN 62493, EN 61000-3-2

• Warranty: 3 years

Packaging

• Unitas Dimensiones: Ø90mm 50mm

• Pondus: 120g (5W) / 150g (7W)

• Packaging: 10pcs/box (spumam protectus)

Ordering Guide

• Bezel Figura: Circum (default) / Quadratum (specificare)

• Bezel Color: Albus / Niger / Nickel-patellatus

• CCT Electio: Pre-pone per dial switch (3000K/4000K/5000K)

Notae ad Installation

• Perficite IP65 gasket bene signatum in institutione.

• Dial-switch CCT ante institutionem apponi debet (in exactoris sita).

• For quadratum bezels, cutout compatibility (additional template provided).

Fac me certiorem, si opus est servandis (exempli gratia, exactoris singula, consuetudo CCT optiones)!

Applications

• Outdoor: Porches, hortus lucendi (IP65 aestimavit)

• Commercial: thermae, coquinae, ambulacra obducta

• Industrial: Apothecae, garages
